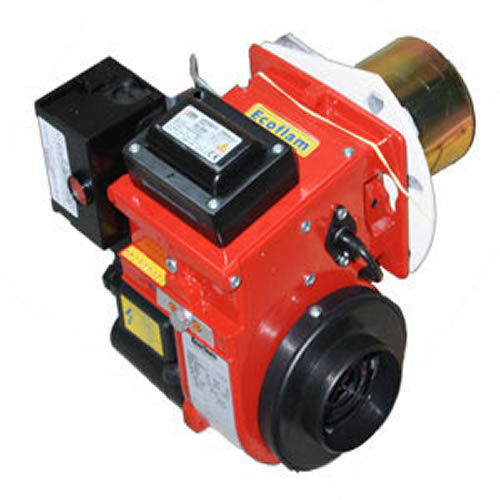

ECOFLAM Oil Burners

ECOFLAM Oil Burners
ECOFLAM Oil Burners
Send Inquiry
Product Code : ECOFLAM- MINOR 8
Brand Name : ECOFLAM
Product Description

ECOFLAM Oil Burners :

  • The range of MINOR burners is the result of steady and intensive research carried out in the oil combustion field .
  • These burners work to the new technologies of ventilation and air fuel mixture , which allow them to obtain low consumption , great combustion stability and high technological efficiency .

Technical Features

 MODEL MINOR
 UNO
UNO R
4
 4R 8 8R 12 12 R
 20 30
 THERMAL POWER min. / max.
 kg/h 1,7/3,3 1,7/3,3 1,8/4,5 1,3/4,5 4/8 4/8 6/12 6/12 10/20 15/28
 MAX Output
 kW 39 3953
 5393
 93140
 140230
 326
  kcal/h 33.000 33.000 45.000 45.000 80.000 80.000 120.000 120.000 200.000 280.000
 Min Output
 kW 20 20 20 15 45 45 70 70 110 175
  kcal/h 17.000 17.000 18.00018.000
 40.00040.000
 60.00060.000
 100.000 150.000
 Max fuel Oil Visc.
     1,5 degree E  (6,7 cSt) a 20 degree c

 Electrical supply  50 Hz
 V 220 Single phase
 220 single phase 220 single phase
 220 single phase  220 single phase  220 single phase  220 single phase  220 single phase 220 single phase
 220 single phase
 Motor Power
 kW 0,380,48
0,44
0,54
 0,44 0,54 0,48 0,58 0,52 0,56
