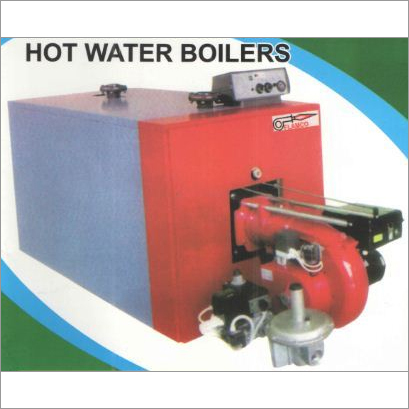

Product Description
We introduce ourselves as an affluent manufacturer and exporter of the best quality Hot Water Generator. It is manufactured using quality checked materials under the strict surveillance of our team in conformity with defined industry norms. This generator is used for heating the water. Further, this Hot Water Generator can be availed from us in numerous specifications and can be customized as per the information given by our customers.
Features:
- Overvoltage and short-circuit protection
- Optimum performance
- Low power consumption
High efficiency fully automatic hot water generator from 50,000 kcal/h to 1000,000 kcal/h suitable for light oil, lpg and natural gas.
Hot water generator in with heating system suitable for heating water up-to 95 degree celsius.
Main Features:-
- Steel mono block boiler with 70 mm thick glass fiber insulating blanket.
- Over pressurized combustion chamber and fully cooled flue-ways.
- Three pass flue-ways.
- Easier cleaning of the tube bank and combustion chamber.
- Flow and return connections located on top of the generator.
- Provided with connection at the lower part of the generator to eliminate sludge and drain stove enameled steel sheet outer casing.
- Designed and manufactured according to current european standards.
- Fitted control panel.
- Fully insulated to minimize heat losses.
- Easy installation
- Complete with fully automatic high efficiency oil / gas burner
Technical Specification
| Automatic Grade | Automatic |
| Capacity | 50,000 kcal/h to 10,00,000 kcal/h |
| Brand | Flamco |
| Type | Hot Water Boilers |
| Heating Water | upto 95 degree C |
The HWG-20 hot water generator provides a high-efficiency solution for large-scale hot water requirements. Its advanced safety features, including over-temperature and over-pressure protection, as well as flame failure alarms, safeguard both users and equipment. With an automatic processing type and microprocessor-based controls, users can trust consistent water temperature and pressure for all industrial and commercial needs.
Flexible Fuel Options and InstallationChoose between oil, gas, or dual fuel heating to best suit your facilitys requirements. Thanks to its skid-mounted design, installation is straightforward and can be adapted for a variety of environments such as hotels, hospitals, or manufacturing plants. The systems compact dimensions and corrosion-resistant material make it durable and easy to maintain.
FAQs of Hot Water Generator:
Q: How does the HWG-20 hot water generator operate?
A: The HWG-20 functions automatically, using a modulating burner and a microprocessor control panel. It continuously heats water to temperatures up to 95C, maintaining pressure of up to 5 kg/cm, and provides a steady hot water supply for cleaning, bathing, and process use.
Q: What are the benefits of using high-quality glass wool insulation in this generator?
A: Glass wool insulation significantly reduces heat loss, improving energy efficiency by retaining more heat within the system. This enhances safety and lowers operational costs over time by minimizing fuel consumption.
Q: Where can the HWG-20 hot water generator be installed?
A: The generators skid-mounted and compact design allow installation in diverse settings such as hotels, hospitals, process plants, industrial facilities, and residential complexes. Its flexible configuration facilitates relocation and system upgrades.
Q: What is the process for controlling and monitoring the system?
A: A microprocessor-based automatic control panel regulates temperature, pressure, and burner operation. Integrated safety features, such as flame failure alarms and over-temperature/pressure protection, provide comprehensive system monitoring and control for reliable operation.
Q: When should routine maintenance be performed on the HWG-20?
A: Routine maintenance checks are advisable at regular intervals, as recommended by the manufacturer. This typically includes inspecting the burner, control system, insulation, and safety components to ensure optimal performance and longevity.
Q: What applications is the HWG-20 suitable for?
A: The HWG-20 caters to a range of applications, delivering continuous hot water for hotels, hospitals, process plants, industries, and residential complexes. It is suitable for process heating, cleaning, bathing, and other commercial hot water needs.
